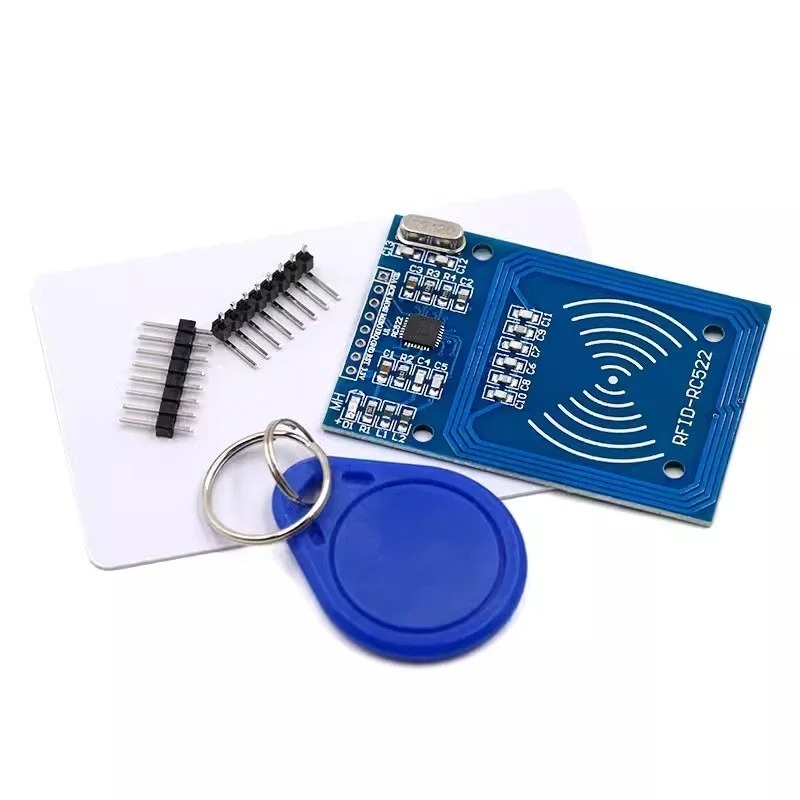

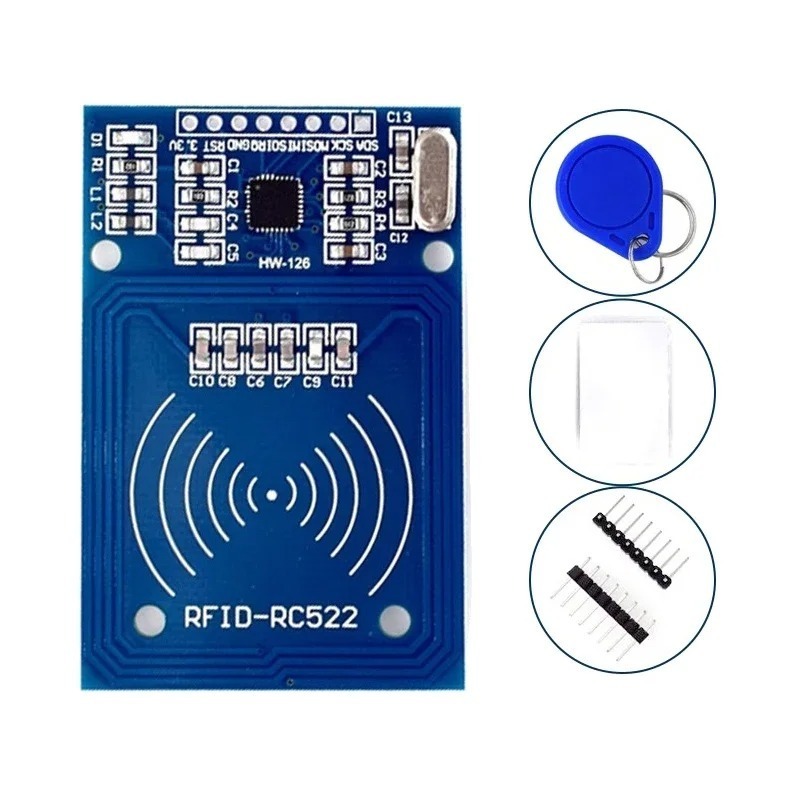

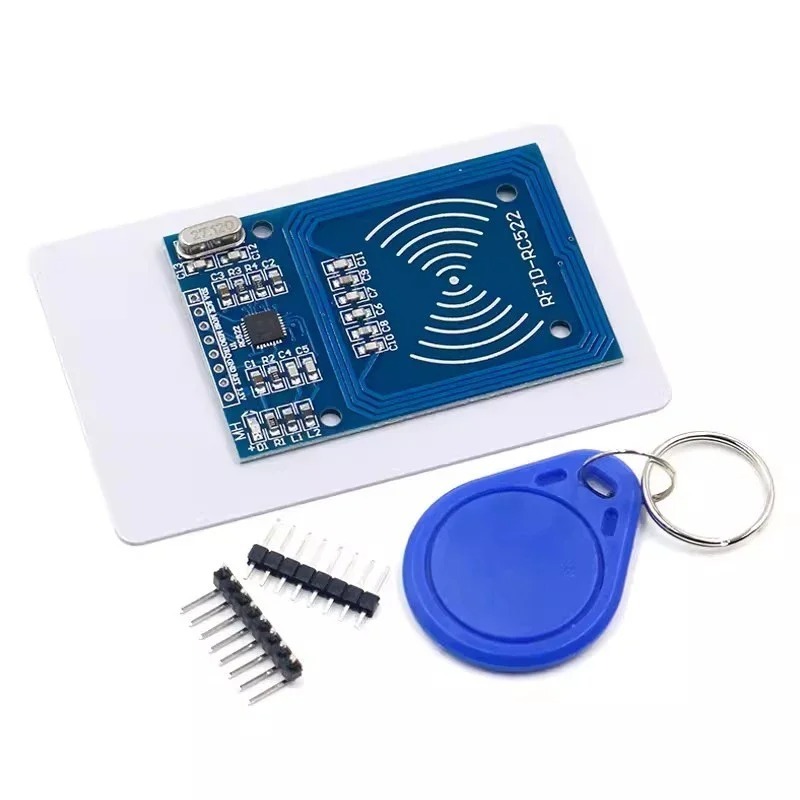

13.56 Mhz Mifare MFRC-522 RC522 RFID Reader Writer

Rp 36,500

Bagi yang hobi Arduino, ini ada satu lagi komponen yang compatible dengan arduino, Mifare RC522 RFID.

Tinggal solder sedikit dan download library, sudah bisa bereksperimen.

Spesifikasi:

Operating current :13-26mA/DC 3.3V

Idle current :10-13mA/DC 3.3V

Sleep current: 80uA

Peak current: 30mA

Operating Frequency: 13.56MHz

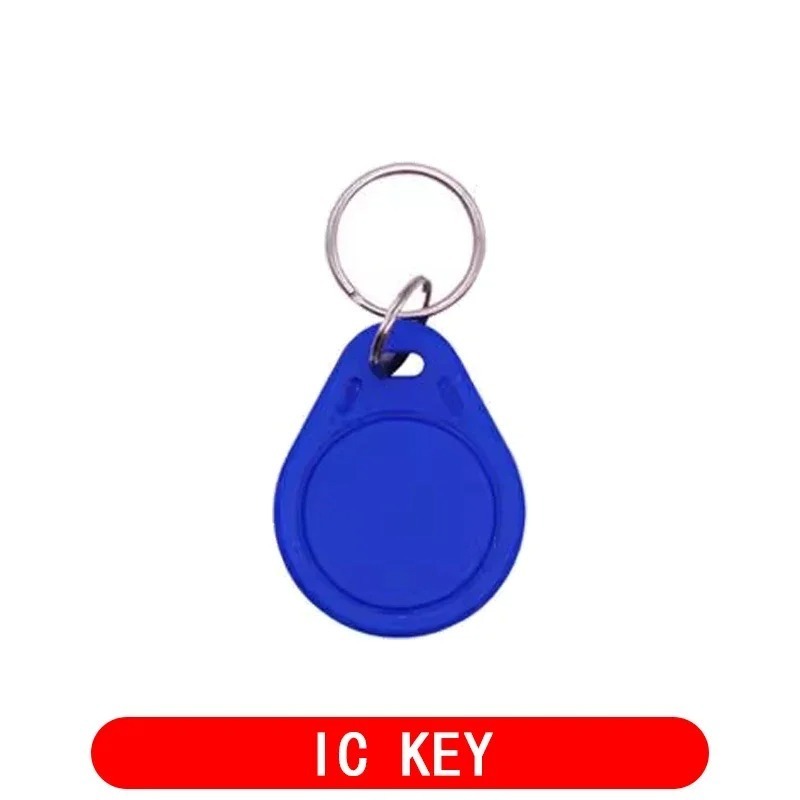

Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire

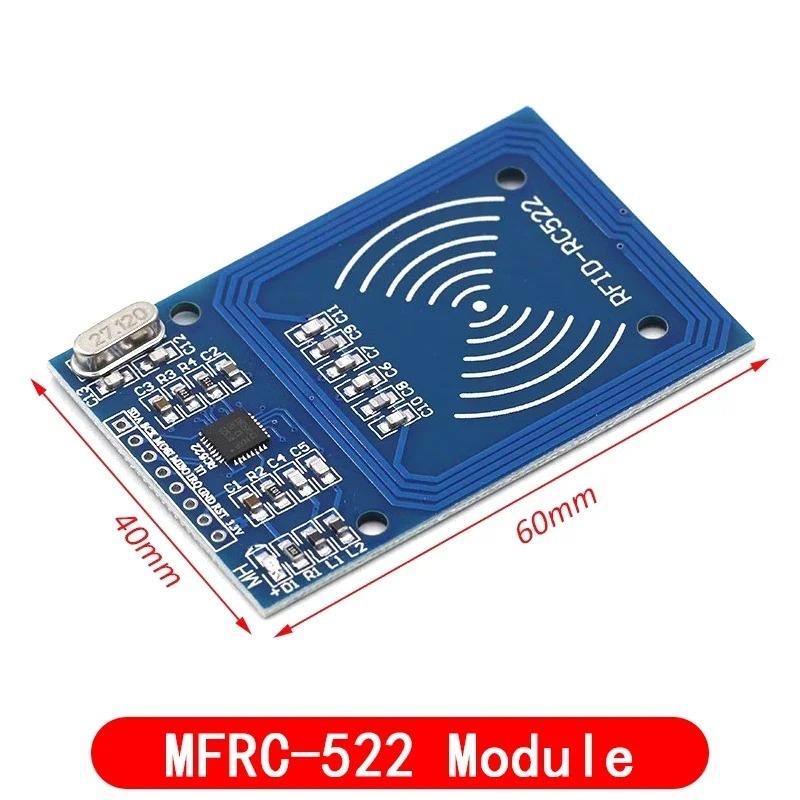

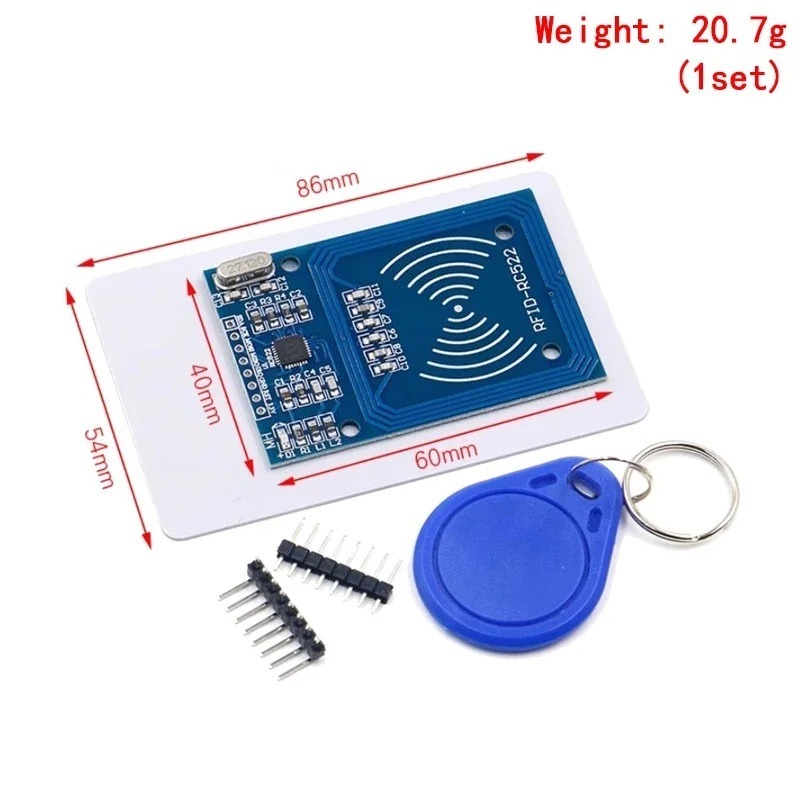

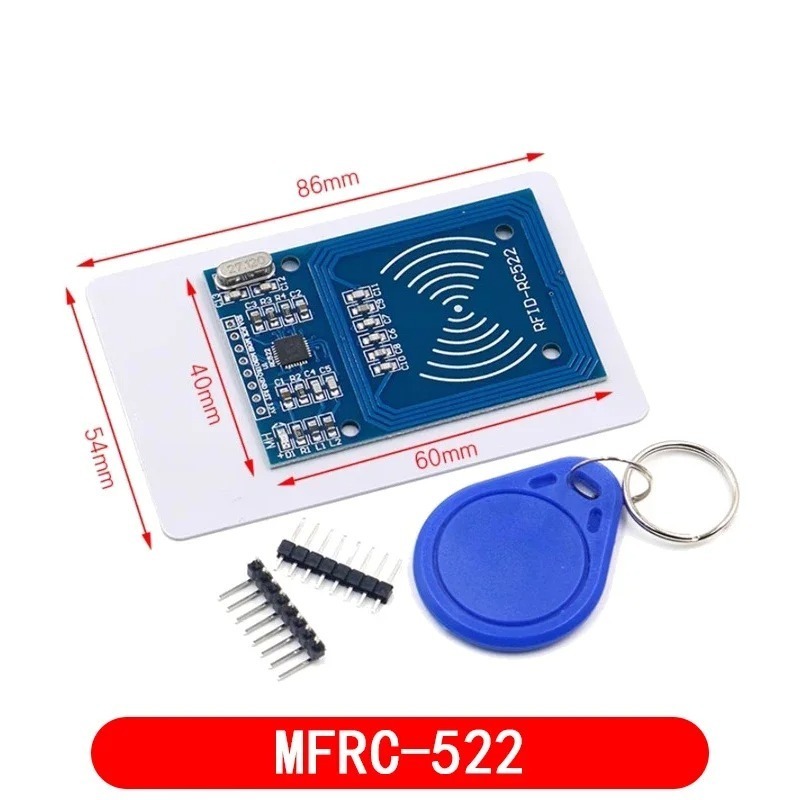

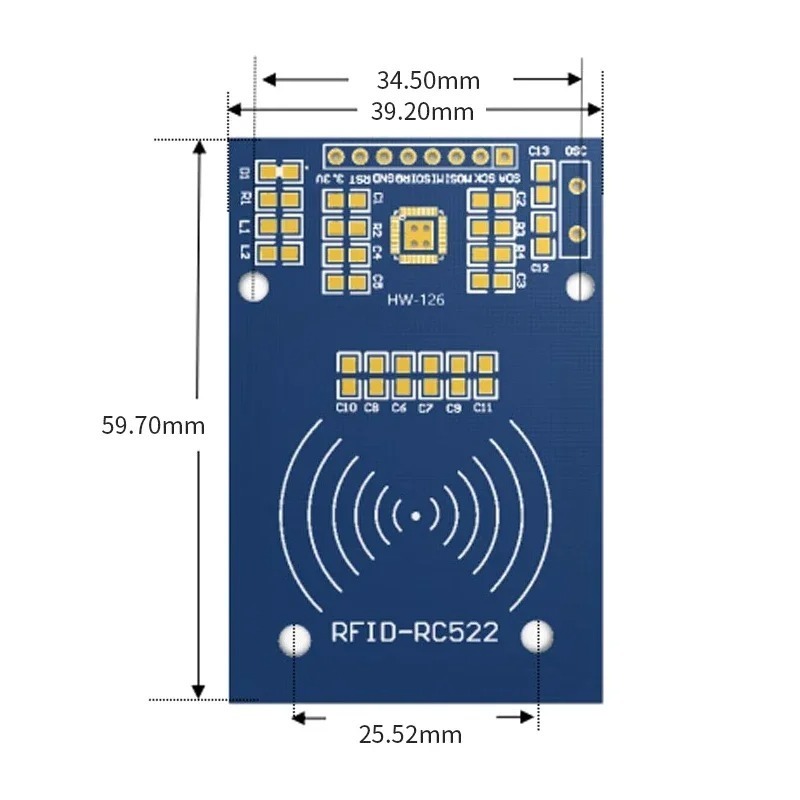

Product physical characteristics: size: 40mm60mm

Environmental Operating temperature: -20-80 degrees Celsius

Environmental Storage Temperature: -40-85 degrees Celsius

Relative humidity: relative humidity 5% -95%

Module interfaces SPI Parameter:

Data transfer rate: maximum 10Mbit/s


 :
 :
50g
